Micro-Vu designs automated 3D dimension measuring machines. These machines use 3D software, image processing, precision machines and motion control, lasers, tactile probes and 3D sensors to measure mechanical dimensions on various parts to accuracies of a micron.

Vertex

Starting price – $35,400

*Please contact us for additional options and pricing

The Vertex Multisensor Measurement Systems implement new technologies to provide speed and accuracy on reliable and affordable measuring machines.

Micro-Vu’s InSpec Metrology Software provides point-and-click simplicity, proprietary edge detection, advanced lighting control and calibration, multi-sensor integration, automated calibrations, and a clear display of measurement data and tolerances.

The systems include our InSpec Metrology Software, a programmable optical zoom, 3x digital zoom, advanced LED lighting, and boasts a single USB connection to your workstation computer.

View Brochure

Micro-Vu Vertex SystemsEncoder ResolutionXY AccuracyZ AccuracyMeasurement Capacity (mm)Stage CapacitySoftwareMultisensor Integration Available!Machine Size (mm)
Vertex 2510.1 µm2.0 + L/2502.0 + L/200250 x 160 x 16010 kgInSpec Metrology SoftwareVision, Touch, Rotary, Laser606 x 808 x 1033
NEW! Vertex 2610.1 µm2.0 + L/2502.0 + L/200250 x 160 x 16010 kgNEW Technology! Vision, Touch, Rotary, Laser755 x 1130 x 1075
Vertex 3110.1 µm2.6 + L/1753.0 + L/150315 x 315 x 16010 kgVision, Touch, Rotary, Laser718 x 1084 x 1029
Vertex 3120.1 µm2.6 + L/1753.0 + L/100315 x 315 x 25010 kgVision, Touch, Rotary, Laser718 x 1084 x 1208
NEW! Vertex 3410.1 µm2.6 + L/1753.0 + L/150315 x 315 x 16010 kgNEW Technology! Vision, Touch, Rotary, Laser900 x 1410 x 1065
NEW! Vertex 342 0.1 µm2.6 + L/1753.0 + L/100315 x 315 x 25010 kgNEW Technology! Vision, Touch, Rotary, Laser900 x 1410 x 1245

*Accuracy units are microns; length L units are millimeters.

Vertex Automated Product Accessories

InSpec Metrology SoftwareAdvanced IlluminationTouch Probe FeaturesRotary FeaturesLaser Features
Dynamic Sub-Pixel Image ProcessingLED Lighting - Surface, Profile and Axial
Automated probe calibrationsVertical and horizontal mountingPoint and Path data
Point Edge Detection ToolsMulti-Ring, Multi-Sector RinglightsAutomatic approach vectoring and dockingFaceplate and chuck includedGraphical range display
Multiple Point Edge Detection ToolsLighting Angles from 25 to 90 DegreesAutomated rotary calibrationAutomated laser calibrations
Video Overlays and CrosshairIntuitive Graphic InterfaceHigh sensitivity, low triggering force probes availableView Touch Probe Rotary Kits BrochureHigh sampling rate
On-Screen ScaleFull Control to Enhance EdgesView Touch Probe Rotary Kits BrochureView Laser Kits Brochure
Feature ConstructionsLong Life LEDs (approx 10,000 hrs)
Tool Property EditingInSpec Includes Lights Calibration
Lights, Zoom, and Zone Editing
Instant Tool Editing on Stored Images
Advanced Dimensioning and Tolerancing
Automated Export Settings
Automatic Report Construction
Feature Summary Display
Data Points Display (Whisker Charts)
Feature Status Log Display
Full Screen, Window, and Dual Monitor Display
Image Capture and Export to JPG or BMP
User Configuration and Password Protection
View InSpec Software Brochure



Excel

Starting price – $55,560

*Please contact us for additional options and pricing

The Excel Multisensor Measuring Centers employ new technologies to provide high speed and accuracy on reliable and affordable measurement systems.

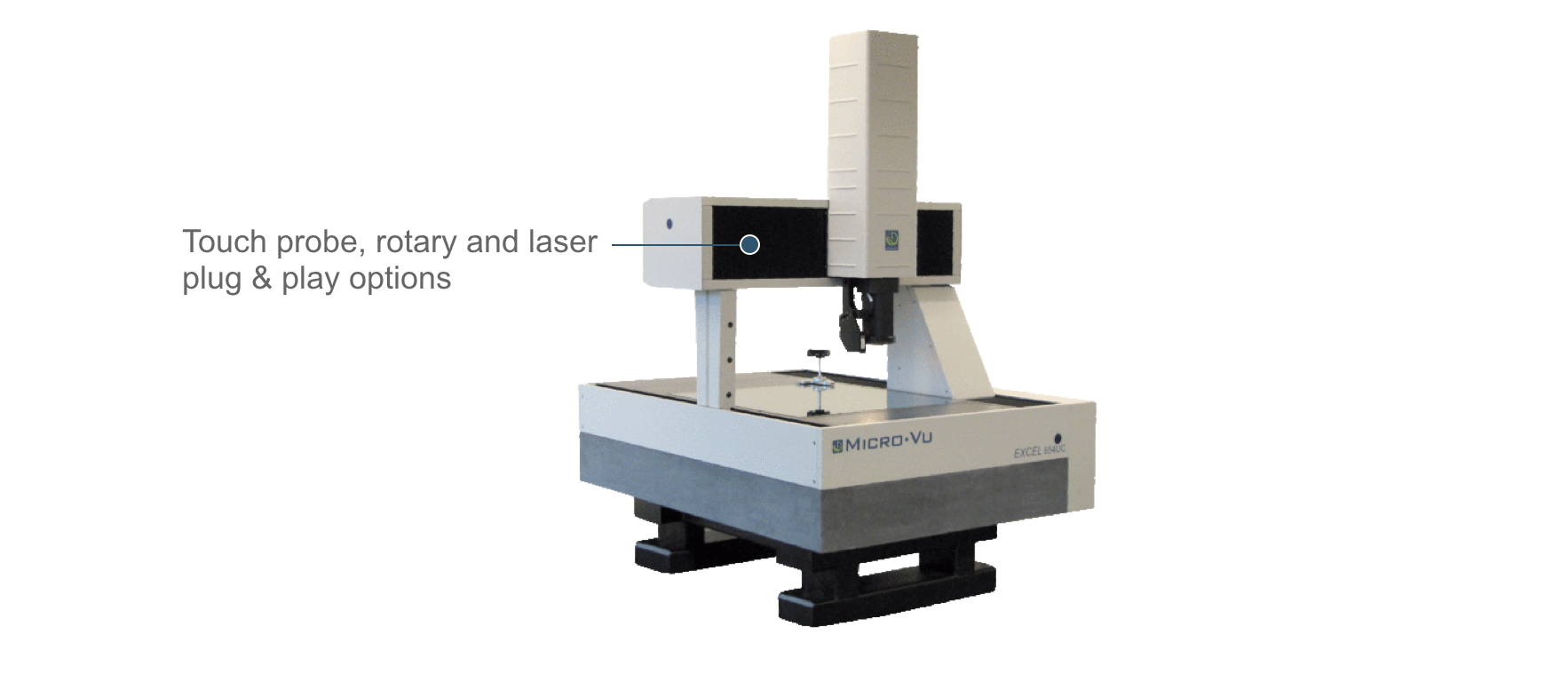

In addition to Vision capabilities, an Excel offers Touch Probe and Laser measurement capabilities. Touch Probe capabilities improve 3D measurement capabilities. Laser capabilities improve speed for scanning and Z height measurements.

With the multisensor capabilities, advanced digital and optic zoom, proprietary edge detection, and InSpec Metrology Software, the Excel Measuring Centers can handle demanding measurement applications.

The gantry style system accommodates large parts and fixtures of multiple parts while maintaining a relatively small footprint. The Excel series of machines measures parts up to 2.5 meters long and up to 100 kg in weight.

View Brochure

Micro-Vu Excel Systems Scale ResolutionXY AccuracyZ AccuracyMeasurement Capacity (mm)Distributed Weight CapacityMultisensor Integration Available!
Excel 501HM / HC0.4 µm2.8 + L/2002.8 + L/100400 x 500 x 160100 kgVision, Touch, Rotary, Laser
UM / UC0.1 µm2.5 + L/2002.5 + L/100Vision, Touch, Rotary, Laser
Excel 502HM / HC0.4 µm3.1 + L/2003.3 + L/100400 x 500 x 250100 kgVision, Touch, Rotary, Laser
UM / UC0.1 µm2.8 + L/2003.0 + L/100Vision, Touch, Rotary, Laser
NEW! Excel 511USM / USCup to 0.05 µm2.5 + L/2002.5 + L/100420 x 510 x 160100 kgNEW Technology! Vision, Touch, Rotary, Laser
NEW! Excel 512USM / USCup to 0.05 µm2.8 + L/2003.0 + L/100420 x 510 x 250100 kgNEW Technology! Vision, Touch, Rotary, Laser
Excel 661HM / HC0.4 µm2.8 + L/2002.8 + L/100660 x 680 x 160100 kgVision, Touch, Rotary, Laser
UM / UC0.1 µm2.5 + L/2002.5 + L/100Vision, Touch, Rotary, Laser
Excel 662HM / HC0.4 µm3.1 + L/2003.3 + L/100660 x 680 x 250100 kgVision, Touch, Rotary, Laser
UM / UC0.1 µm2.8 + L/2003.0 + L/100Vision, Touch, Rotary, Laser
Excel 664UM / UC0.1 µm3.5 + L/2003.8 + L/100660 x 680 x 400100 kgVision, Touch, Rotary, Laser
NEW! Excel 701USM / USCup to 0.05 µm2.5 + L/2002.5 + L/100660 x 715 x 160100 kgNEW Technology! Vision, Touch, Rotary, Laser
NEW! Excel 702USM / USCup to 0.05 µm2.8 + L/2003.0 + L/100660 x 715 x 250 100 kgNEW Technology! Vision, Touch, Rotary, Laser
NEW! Excel 704USM / USCup to 0.05 µm3.5 + L/1503.8 + L/100660 x 715 x 400100 kgNEW Technology! Vision, Touch, Rotary, Laser
Excel 1051UM / UC0.1 µm4.2 + L/2002.8 + L/1001050 x 1050 x 160100 kgVision, Touch, Rotary, Laser
Excel 1052UM / UC0.1 µm4.5 + L/2003.3 + L/1001050 x 1050 x 250100 kgVision, Touch, Rotary, Laser
Excel 1054UM / UC0.1 µm5.2 + L/1503.8 + L/1001050 x 1050 x 400100 kgVision, Touch, Rotary, Laser
Excel 1601UM / UC0.1 µm4.2 + L/2002.8 + L/1001050 x 1650 x 160100 kgVision, Touch, Rotary, Laser
Excel 1602UM / UC0.1 µm4.5 + L/2003.3 + L/1001050 x 1650 x 250 100 kgVision, Touch, Rotary, Laser
Excel 1604UM / UC0.1 µm5.2 + L/1503.8 + L/1001050 x 1650 x 400100 kgVision, Touch, Rotary, Laser
Excel 1651UM / UC0.1 µm4.2 + L/2002.8 + L/1001250 x 1650 x 160100 kgVision, Touch, Rotary, Laser
Excel 1652UM / UC0.1 µm4.5 + L/2003.3 + L/1001250 x 1650 x 250100 kgVision, Touch, Rotary, Laser
Excel 1652UM / UC0.1 µm5.2 + L/1503.8 + L/1001250 x 1650 x 400100 kgVision, Touch, Rotary, Laser
EXTRA Large Capacity:
Excel 2000USM / USC0.1 µm5.5 + L/3003.0 + L/1502000 x 1250 x 200100 kgVision, Touch, Rotary, Laser
Excel 2500USM / USC0.1 µm5.5 + L/3003.0 + L/1502500 x 1600 x 200100 kgVision, Touch, Rotary, Laser

*Accuracy units are microns; length L units are millimeters.

* Additional weight capacity is possible with appropriate fixtures!

Legend:

H – 19.5:1 Zoom Range, ~20x to 390x

U – 36:1 Zoom Range, ~15x to 540x

US – 12.5:1 Zoom Lens, 15x to 180x and 30x to 360x

M – Monochrome, Digital, Hi-Res Video

C – Color, Digital, Hi-Res Video

Excel Automated Product Accessories

InSpec Metrology Software Advanced Illumination  Touch Probe Features Rotary FeaturesLaser Features
Dynamic Sub-Pixel Image ProcessingLED Lighting - Surface, Profile and Axial
Automated probe calibrationsVertical and horizontal mountingPoint and Path data
Point Edge Detection ToolsMulti-Ring, Multi-Sector RinglightsAutomatic approach vectoring and dockingFaceplate and chuck includedGraphical range display
Multiple Point Edge Detection ToolsLighting Angles from 25 to 90 DegreesAutomated rotary calibrationAutomated laser calibrations
Video Overlays and CrosshairIntuitive Graphic InterfaceHigh sensitivity, low triggering force probes availableView Touch Probe Rotary Kits BrochureHigh sampling rate
On-Screen ScaleFull Control to Enhance EdgesView Touch Probe Rotary Kits BrochureView Laser Kits Brochure
Feature ConstructionsLong Life LEDs (approx 10,000 hrs)
Tool Property EditingInSpec Includes Lights Calibration
Lights, Zoom, and Zone Editing
Instant Tool Editing on Stored Images
Advanced Dimensioning and Tolerancing
Automated Export Settings
Automatic Report Construction
Feature Summary Display
Data Points Display (Whisker Charts)
Feature Status Log Display
Full Screen, Window, and Dual Monitor Display
Image Capture and Export to JPG or BMP
User Configuration and Password Protection
View InSpect Software Brochure

VF7

Starting price – $28,888

*Please contact us for additional options and pricing

Micro-Vu’s InSpec Metrology Software provides point-and-click simplicity, proprietary edge detection, advanced lighting control and calibration, multi-sensor integration, automated calibrations, and a clear display of measurement data and tolerances.

The systems include our InSpec Metrology Software, high and low image magnification, advanced LED lighting, and boasts a single USB connection to your workstation computer.

NEW Micro-Vu VF7XY AccuracyMeasurement Capacity (mm)Measurement Range (mm)Stage Position Range (mm)Stage CapacitySoftwareMachine Dimesions (mm)
VF7 with LOW Image Maginication± 6 µm70.3 x 50.530493 kgInSpec Metrology Software290 x 453 x 883
VF7 with HIGH Image Maginication± 3 µm17.6 x 12.63493 kg

*Accuracy units are microns; length L units are millimeters.

KEY FEATURES:
Low and High Magnification Optical System
Large Measurement Area
*Measure Entire Part in One Snapshot
Large Measurement Range
*Minimizes Measurement Error
*Minimizes Focus Adjustments
Instant Zoom
*High Resolution Camera
Advanced Lighting System
*8 Channel Ringlight
*Axial Surface Light
*Profile Backlight
Automatic Part Identification
*Automatically Adjusts To Part’s Orientation
*Minimal Part Fixturing Required
Scratch Resistance Stage Glass
Single Snapshot Measurement

Sol

Starting price – $15,335

*Please contact us for additional options and pricing

The Sol Vision System implements new technologies to provide speed and accuracy on a reliable and affordable measuring machine. The Sol bridges the gap between manual and automated measurement systems.

A programmable 19.5x zoom (6.5x optical and 3x digital), non-linear compensation (optics and stage), advanced lighting, and part program compatibility make the Sol the most advanced machine in its class.

Micro-Vu’s InSpec Metrology Software drives the Sol in addition to manual, vision, and multisensor systems. InSpec’s point-and- click measuring and proprietary edge detection simplify demanding measurement applications.

View Brochure

Micro-Vu Sol SystemsScale ResolutionXY AccuracyZ AccuracyMeasurement Capacity (mm)Stage CapacitySoftwareMachine Size (mm)
Sol 1610.1 µm2.8 + L/1502.8 + L/100160 x 160 x 16010 kgInSpec Metrology Software545 x 705 x 775
Sol 3110.1 µm4.5 + L/1502.8 + L/100315 x 315 x 16010 kg827 x 1043 x 824
Sol 3120.1 µm4.5 + L/1503.3 + L/750315 x 315 x 25010 kg827 x 1043 x 1019

InSpec Metrology SoftwareAdvanced Illumination
Dynamic Sub-Pixel Image ProcessingLED Lighting - Surface, Profile and Axial
Point Edge Detection ToolsMulti-Ring, Multi-Sector Ringlights
Multiple Point Edge Detection ToolsLighting Angles from 25 to 90 Degrees
Video Overlays and CrosshairIntuitive Graphic Interface
On-Screen ScaleFull Control to Enhance Edges
Feature ConstructionsLong Life LEDs (approx 10,000 hrs)
Tool Property EditingInSpec Includes Lights Calibration
Lights, Zoom, and Zone Editing
Instant Tool Editing on Stored Images
Advanced Dimensioning and Tolerancing
Automated Export Settings
Automatic Report Construction
Feature Summary Display
Data Points Display (Whisker Charts)
Feature Status Log Display
Full Screen, Window, and Dual Monitor Display
Image Capture and Export to JPG or BMP
User Configuration and Password Protection
