Artec 3D is a global leader in 3D scanning technology, providing the best and most comprehensive 3D scanners and post-processing software applicable in a wide range of industries.
Scanners

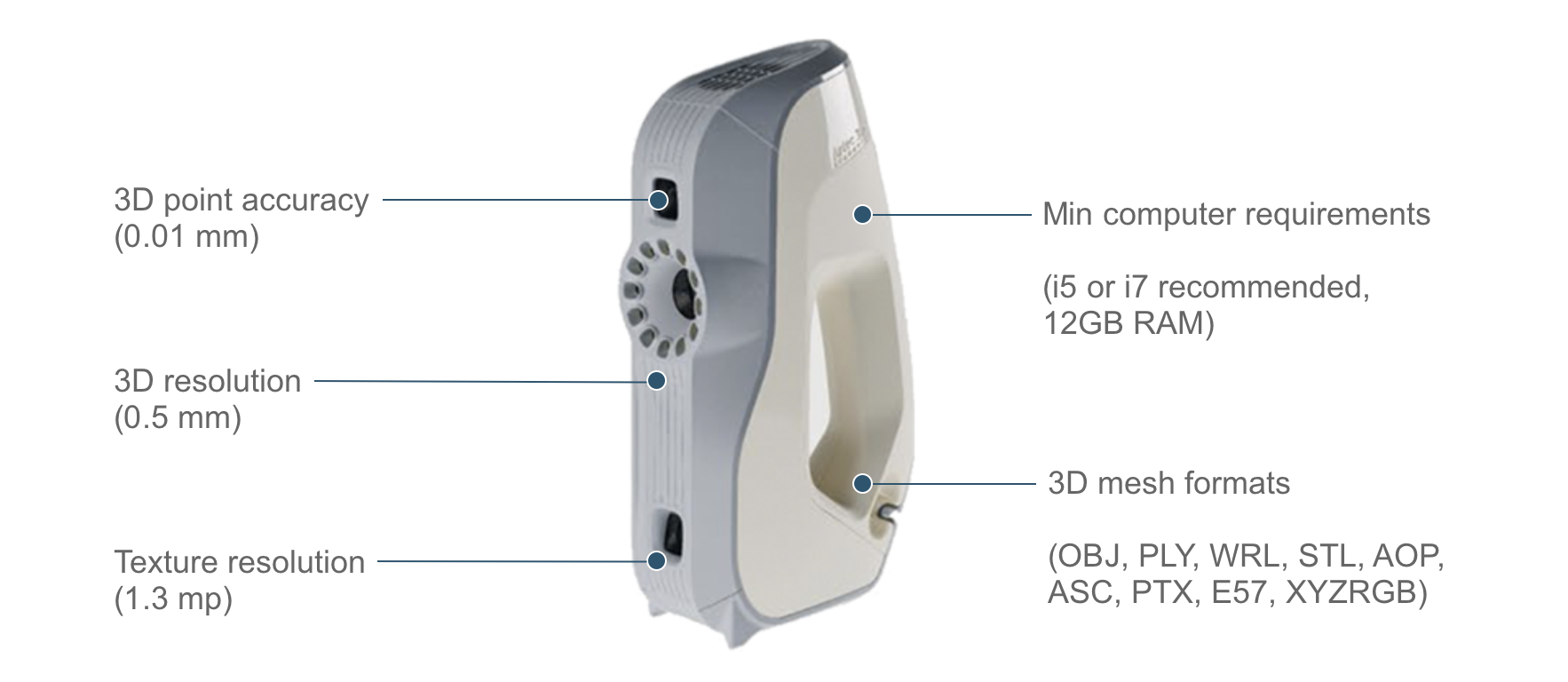

Artec Eva
EDUCATIONAL PACKAGES AVAILABLE
Eva I $19,800
Eva Lite I $9,800
* Start with Eva Lite and upgrade to Eva at anytime!
Bundle Eva + Space Spider I $35,800 DISCOUNTED PRICE
Bundle Eva + Leo I $36,800 DISCOUNTED PRICE
This structured light 3D scanner is the ideal choice for making a quick, textured and accurate 3D model of medium sized objects such as a human bust, an alloy wheel, or a motorcycle exhaust system. It scans quickly, capturing precise measurements in high resolution.
Artec Eva’s ease of use, speed and precision has made it an essential product for a wide range of industries. From rapid prototyping to quality control, CGI to heritage preservation, the automotive industry to forensics, medicine and prosthetics to aerospace, the device is used to customize, innovate and streamline countless forward-thinking industries. Eva was even used to scan Barack Obama and help make the very first 3D portrait of an American president.
| Full Specs: | Eva | Eva Lite | ||
|---|---|---|---|---|
| Scanner Type | Handheld | |||
| Size of Scanning object / area | Medium | |||
| Accuracy | Up to 0.1mm | |||
| Resolution | Up to 0.5mm | |||
| Texture Resolution | 1.3 mp | na | ||
| Target Free Technology | Yes | |||
| Color + Geometry Tracking | Yes | No | ||
| Color Capture | Yes | No | ||
| Scanning Software | Artec Studio | |||
| Data Processing Software | Artec Studio | |||
| Minimum Computer Requirements | i5 or i7 recommended, 12GB RAM | |||
| Power Source | AC power OR external battery pack | |||
| Interface | 1x USB 2.0, USB 3.0 compatible | |||
| Export Formats: | ||||
| 3D Mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB | |||
| 3D Point Cloud | BTX, PTX | |||
| Formats for Measurements | CSV, DXF, XML | |||
| Costs | 19800 | 9800 | ||
| Cost to Upgrade | 10000 | |||
| 3D Scanning Functionality Comparison | Eva | Eva Lite | ||
| Hybrid Geometry and Texture Tracking | X | |||
| Geometry Tracking | X | X | ||
| Texture Capture | X | |||
| Geomentry Capture | X | X | ||
| Continuous Scanning | X | |||
| Auto Continue from Selected Scans | X | |||
| Option to Scan using Targets | X | |||
| Post-Processing Tools | ||||
| Autopilot | X | X | ||
| Autoalign Scans | Texture and geometry based | Using Geometry data only | ||
| Global Registration | Texture and geometry based | Using Geometry data only | ||
| Make Full Color 3D Models | X |
Battery I $850
Hard Case I $400
Turn Table I $800

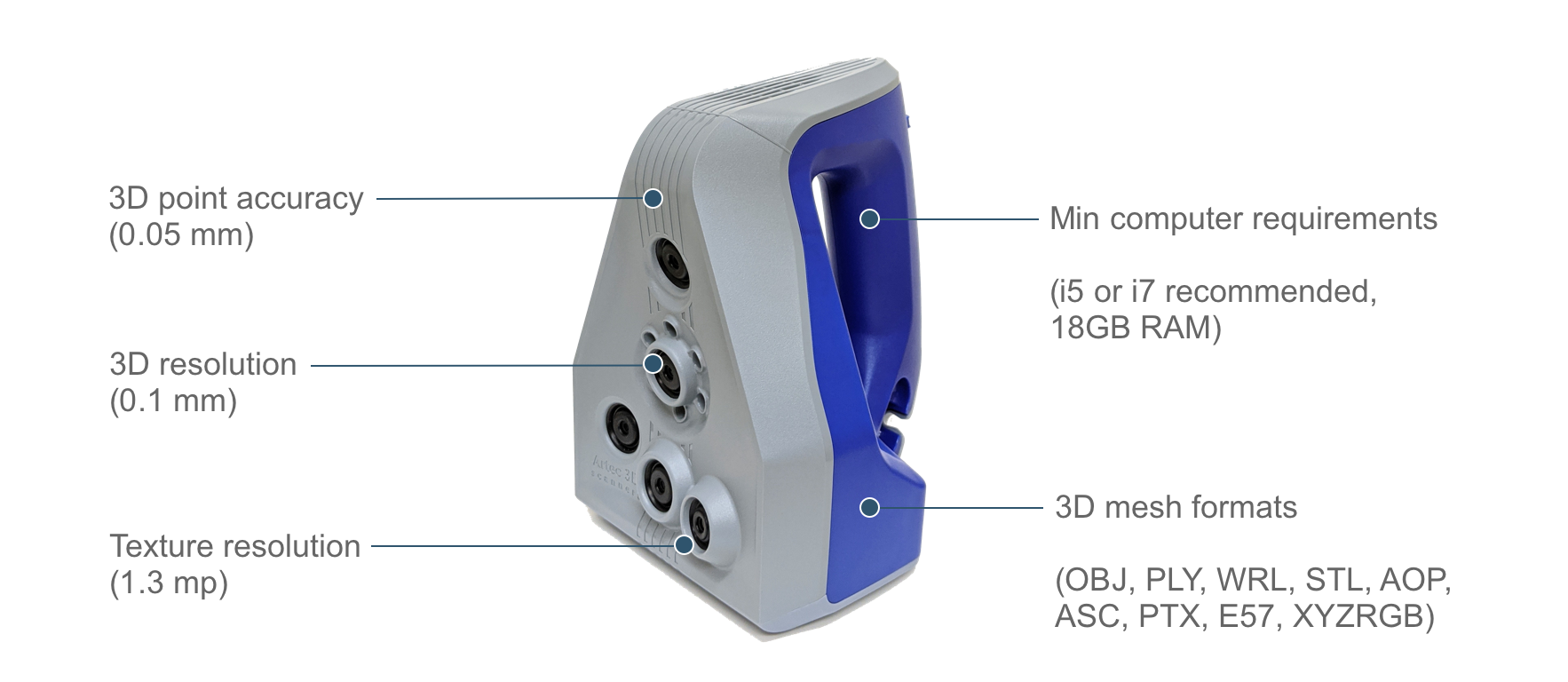

Artec Space Spider
EDUCATIONAL PACKAGES AVAILABLE
$24,800
Bundle Space Spider + Eva I $35,800 DISCOUNTED PRICE
Bundle Space Spider + Leo I $39,800 DISCOUNTED PRICE
A new and enhanced precision instrument for CAD users and engineers, Artec Space Spider is a high-resolution 3D scanner based on blue light technology. It is perfect for capturing small objects or intricate details of large industrial objects in high resolution, with steadfast accuracy and brilliant color.
The scanner’s ability to render complex geometry, sharp edges and thin ribs sets our technology apart. It is an ideal industrial 3D scanner for high resolution capturing of objects such as molding parts, PCBs, keys, coins or even a human ear, followed by the export of the final 3D model to CAD software.
Space Spider offers almost unlimited possibilities in areas such as reverse engineering, quality control, product design and manufacturing.
| Full Specs: | Space Spider |
|---|---|
| Scanner Type | Handheld |
| Size of Scanning object / area | Small |
| Accuracy | Up to 0.05mm |
| Resolution | Up to 0.1mm |
| Texture Resolution | 1.3 mp |
| Target Free Technology | Yes |
| Color + Geometry Tracking | Yes |
| Color Capture | Yes (24 bpp) |
| 3D Light Source | Blue LED |
| Scanning Software | Artec Studio |
| Data Processing Software | Artec Studio |
| Minimum Computer Requirements | i5 or i7 recommended, 18GB RAM |
| Power source | AC power OR external battery pack |
| Interface | 1x USB 2.0, USB 3.0 compatible |
| Export Formats: | |
| 3D Mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| 3D Point Cloud | BTX, PTX |
| Formats for Measurements | CSV, DXF, XML |
| Costs | 24800 |
Battery I $850
Turn Table I $800

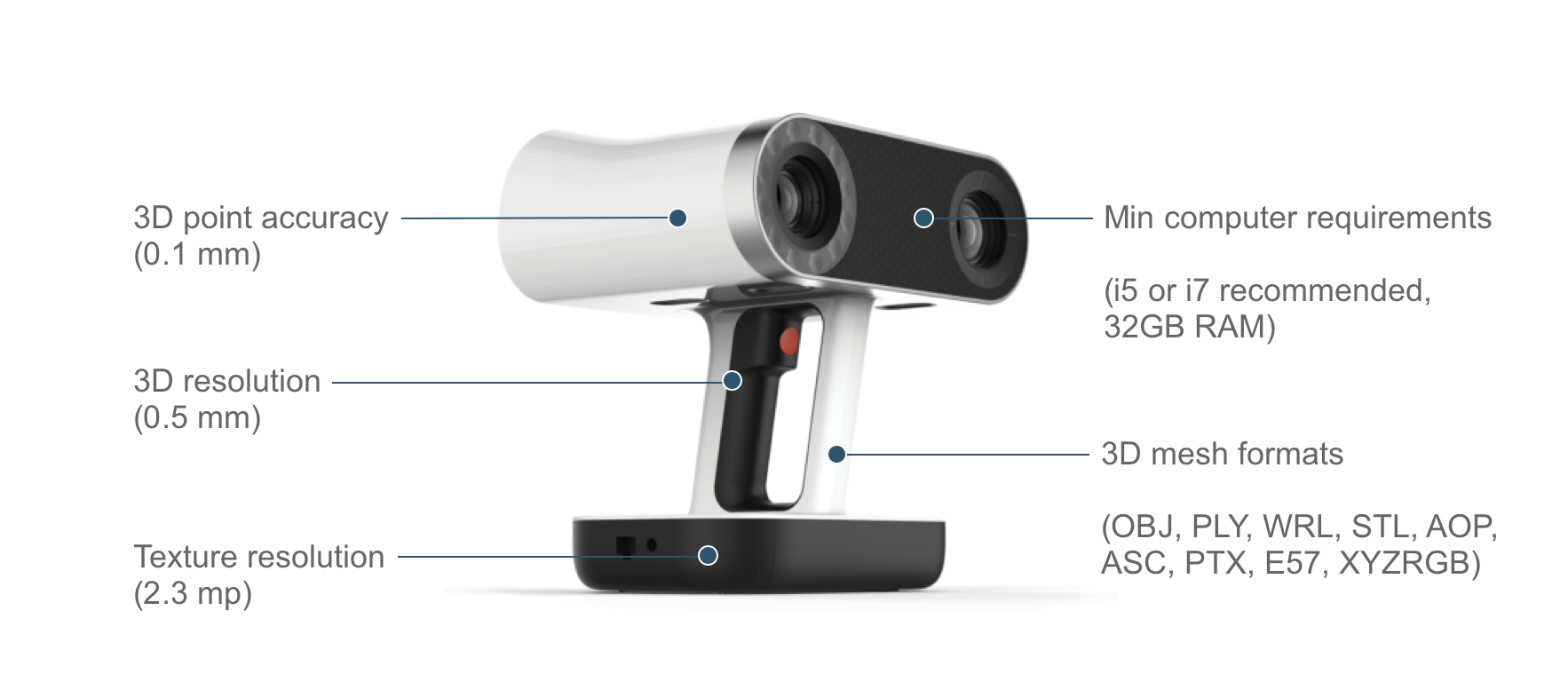

Artec Leo
EDUCATIONAL PACKAGES AVAILABLE
$25,800
Bundle Leo + Eva I $36,800 DISCOUNTED PRICE
Leo + Space Spider I $39,800 DISCOUNTED PRICE
The first 3D scanner to offer onboard automatic processing, Artec Leo is able to provide the most intuitive workflow, making 3D scanning as easy as taking a video. As you scan your object, see the 3D replica being built in real time on Leo’s touch panel screen. Rotate the 3D model, check if you have captured all areas, and fill in any parts you may have missed.
| Full Specs: | Leo |
|---|---|
| Scanner Type | Handheld, tetherless |
| Size of Scanning object / area | Medium to Large |
| Accuracy | Up to 0.1mm |
| Resolution | Up to 0.5mm |
| Texture Resolution | 2.3 mp |
| Target Free Technology | Yes |
| Color + Geometry Tracking | Yes |
| Color Capture | Yes (24 bpp) |
| 3D Light Source | VCSEL |
| Scanning Software | On Board Software |
| Data Processing Software | Artec Studio |
| Minimum Computer Requirements | Scanning: No Computer Required. Post-Processing: i5 or i7, 32GB RAM |
| Power source | Built-in Exchangable Battery, Optional AC Power |
| Interface | Wi-Fi, Ethernet, SD Card |
| Export Formats: | |
| 3D Mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| 3D Point Cloud | BTX, PTX |
| Formats for Measurements | CSV, DXF, XML |
| Costs | 25800 |
Battery I $850
Turn Table I $800

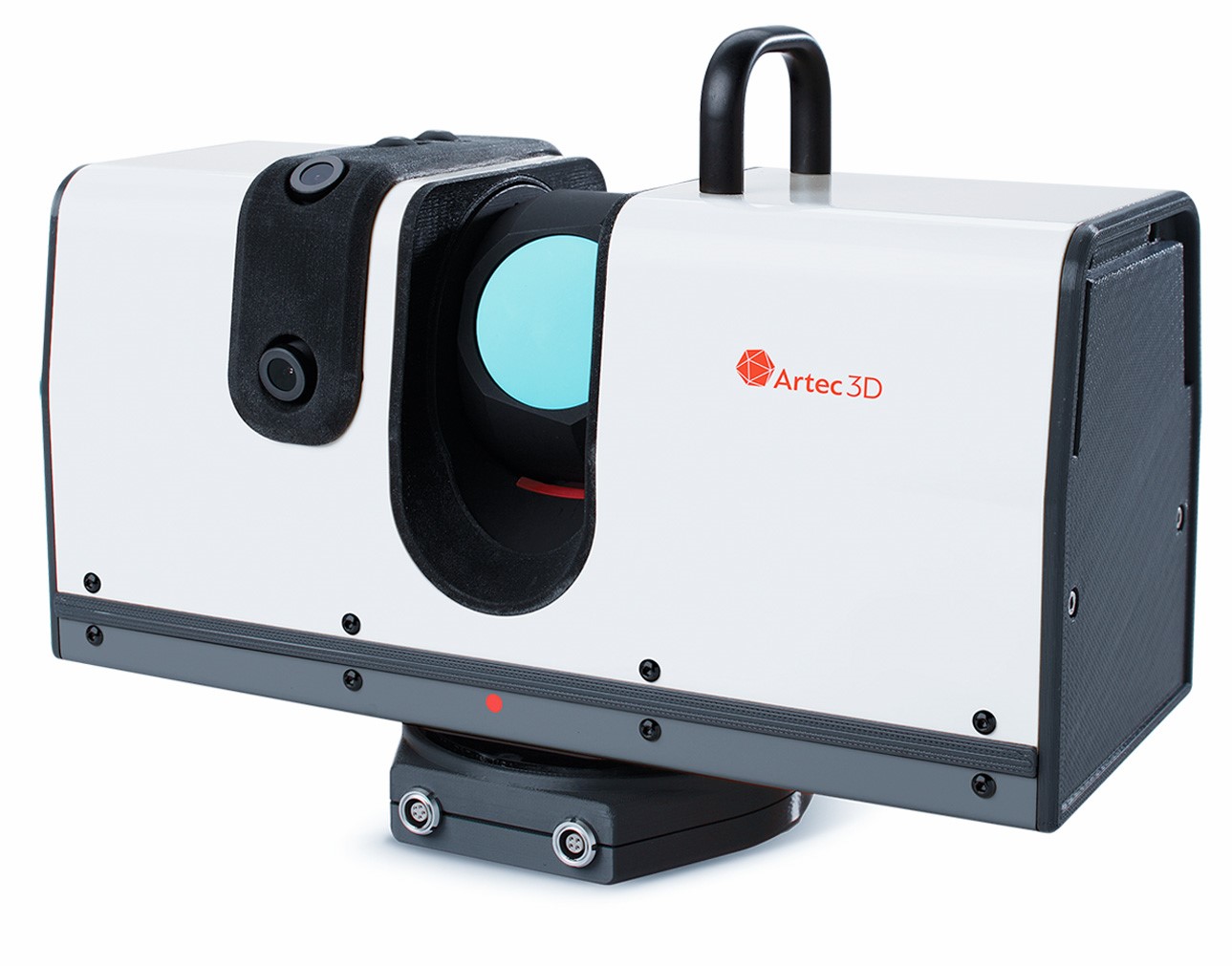

Artec Ray
$60,000
The fastest and most accurate long-range 3D scanner with laser technology for precise capture of large objects such as wind turbines, ship propellers, airplanes and buildings. Producing 3D scans of the highest quality, Artec Ray scans with submillimeter distance precision and best in class angular accuracy. As a result, data capture is noticeably cleaner than that from other 3D laser scanners, with noise levels at an absolute minimum. This speeds up post-processing significantly, making it a hassle free job.
| Full Specs: | Ray |
|---|---|
| Scanner Type | Long Range |
| Size of Scanning object / area | Large to Very Large |
| Accuracy | 0.7mm @15m |
| Resolution | 0.0125˚ |
| Target Free Technology | Yes |
| Color + Geometry Tracking | Yes |
| Color Capture | Yes (Two fully integrated 5 megapixel cameras) |
| 3D Light Source | Continuous Wave Laser |
| Scanning Software | Artec Studio or Artec Remote App |
| Data Processing Software | Artec Studio |
| Minimum Computer Requirements | i5 or i7 recommended, 32GB RAM |
| Power source | AC power and internal power supply |
| Export Formats: | |
| 3D Mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| 3D Point Cloud | BTX, PTX |
| Formats for Measurements | CSV, DXF, XML |
| Costs | 60000 |
Battery I $300
Carry-on Case I $400
Custom Shipping Case I $900
Turn Table I $800

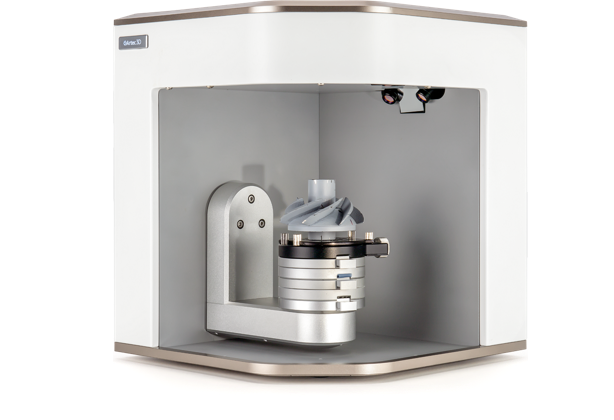

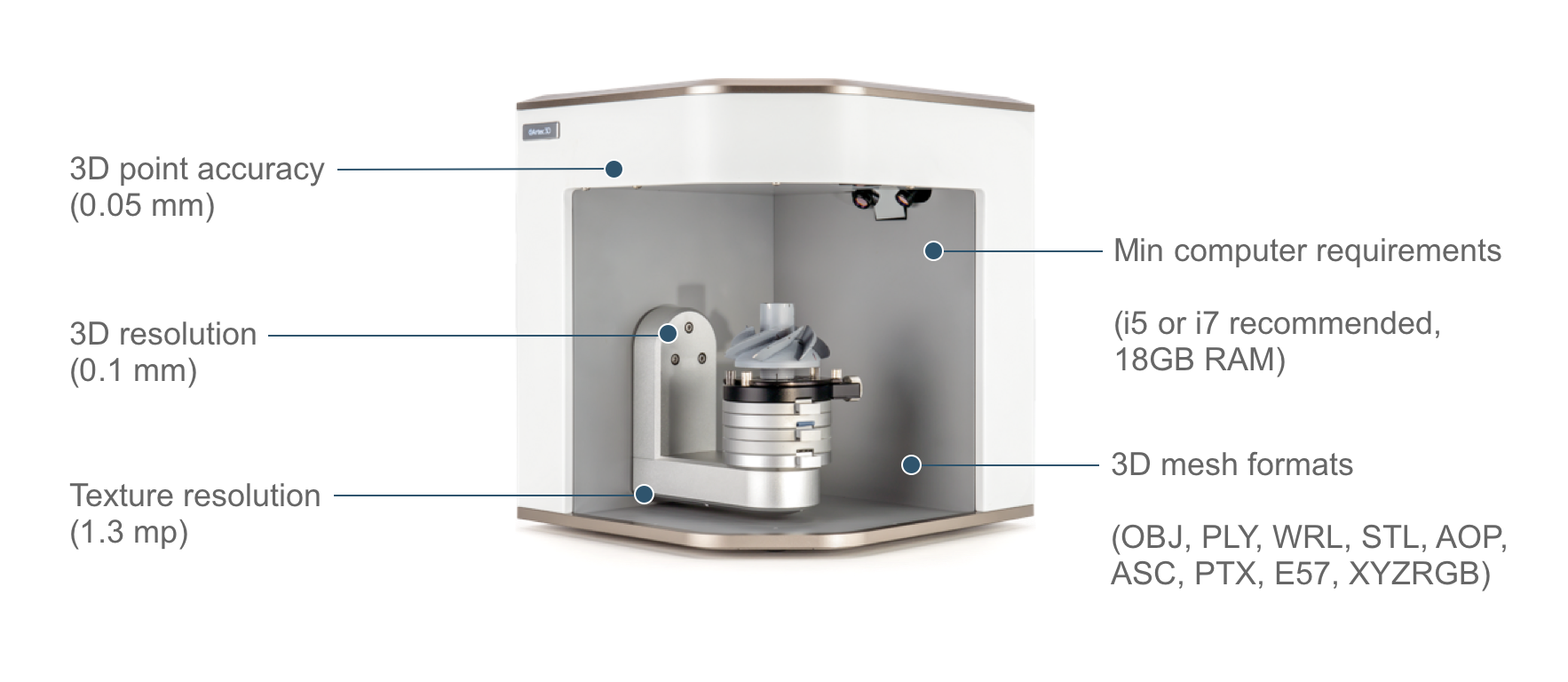

Artec Micro
$29,300
This fully-automated desktop 3D scanner was designed to deliver industrial-quality scans with just one click. Perfect for reverse engineering small objects, quality control, inspection, dentistry, jewelry, design, and more, Artec Micro scans with a point accuracy of up to 10 microns. Created with ease-of-use and precision in mind, Artec Micro brings the ultimate scanning solution right to your desktop.
| Full Specs: | Micro |
|---|---|
| Scanner Type | Desktop |
| Size of Scanning object / area | Very Small |
| Accuracy | Up to 0.1mm |
| Resolution | Up to 0.0029mm |
| Texture Resolution | 6.4 mp |
| Target Free Technology | Yes |
| Color + Geometry Tracking | Yes |
| Color Capture | Yes (24 bpp) |
| 3D Light Source | Blue LED |
| Scanning Software | Artec Studio |
| Data Processing Software | Artec Studio |
| Minimum Computer Requirements | i5 or i7 recommended, 32GB RAM |
| Power source | AC power |
| Interface | USB 3.0 |
| Export Formats: | |
| 3D Mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| 3D Point Cloud | BTX, PTX |
| Formats for Measurements | CSV, DXF, XML |
| Costs | 29300 |
Software
Artec Studio 15
EDUCATIONAL PACKAGES AVAILABLE
$2900 lifetime license
*please contact us for additional licensing options
SOFTWARE + ARTEC PRODUCT BUNDLES AVAILABLE
Artec Studio 15 analyzes the surface of your object and automatically adjusts the sensitivity of your scanner to pick up even tricky areas for 3D scanning. As a result, even new users can digitize black, shiny objects or hair with ease!
Powerful 3D imaging software is critical to a smooth scanning experience. It quite literally controls how the scanner captures data and with what level of precision. Artec Studio features the most advanced 3D data algorithms which give you high precision in your results, while at the same time make 3D scanning intuitive and user-friendly.
Artec Studio also features a full range of tools for you to process your 3D model manually, giving you full control over your data. Included are many features which streamline your workflow, making it even faster to achieve the results you need.
