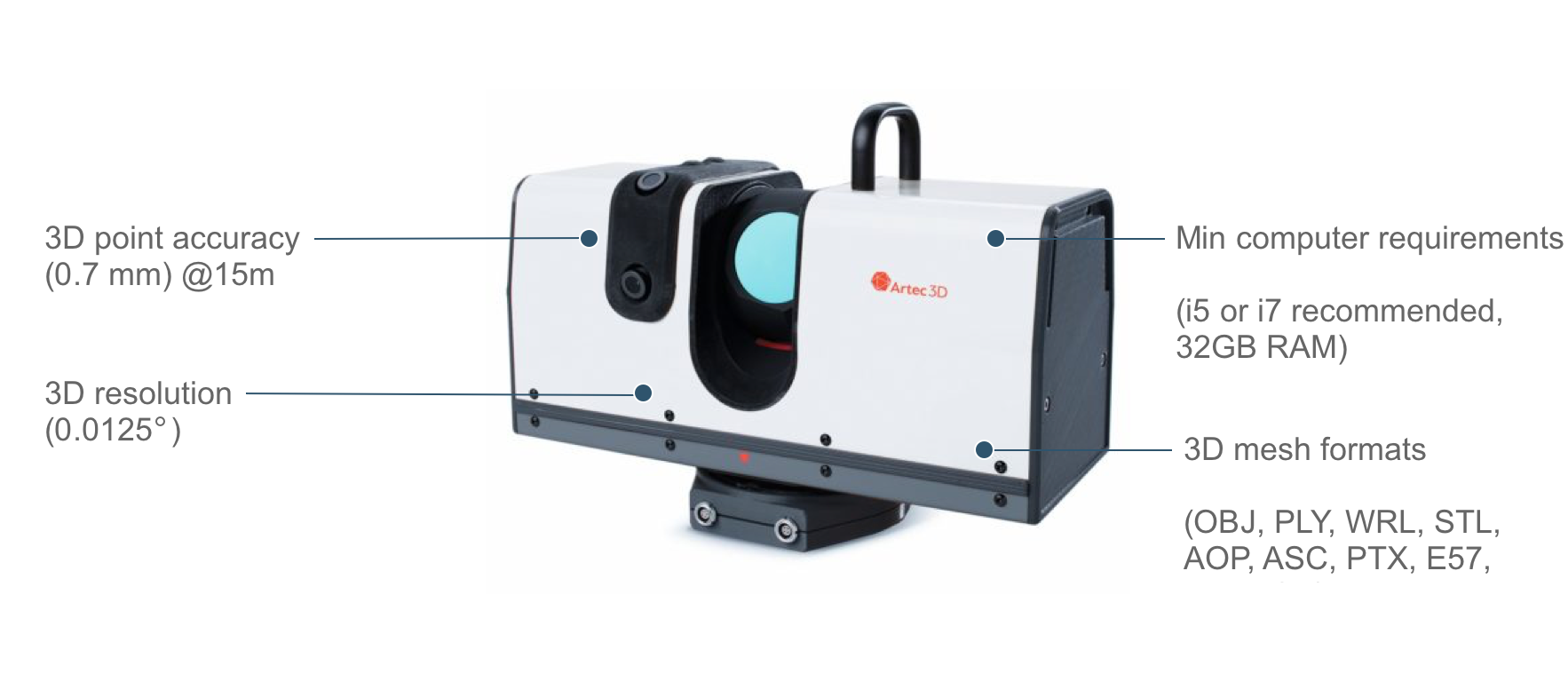

Artec Ray II
$88,000
EDUCATIONAL PACKAGES AVAILABLE
The fastest and most accurate long-range 3D scanner with laser technology for precise capture of large objects such as wind turbines, ship propellers, airplanes and buildings. Producing 3D scans of the highest quality, Artec Ray scans with submillimeter distance precision and best in class angular accuracy. As a result, data capture is noticeably cleaner than that from other 3D laser scanners, with noise levels at an absolute minimum. This speeds up post-processing significantly, making it a hassle free job.
| Full Specs: | Ray |
|---|---|
| Scanner Type | Long Range |
| Size of Scanning object / area | Large to Very Large |
| Accuracy | 0.7mm @15m |
| Resolution | 0.0125˚ |
| Target Free Technology | Yes |
| Color + Geometry Tracking | Yes |
| Color Capture | Yes (Two fully integrated 5 megapixel cameras) |
| 3D Light Source | Continuous Wave Laser |
| Scanning Software | Artec Studio or Artec Remote App |
| Data Processing Software | Artec Studio |
| Minimum Computer Requirements | i5 or i7 recommended, 32GB RAM |
| Power source | AC power and internal power supply |
| Export Formats: | |
| 3D Mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| 3D Point Cloud | BTX, PTX |
| Formats for Measurements | CSV, DXF, XML |
| Costs | 60000 |
Battery I $300
Carry-on Case I $450
Custom Shipping Case I $970
Turn Table I $800
Educational Requirements:
Must be affiliated with a school or research grant.
Educational Pricing:
Contact Us for pricing details
What’s Included:
– Artec 3D scanner(s)
– Artec Studio: FREE pack of 20 licenses
– 2 year warranty
– 2 years of free major software upgrades
*Artec Studio licenses provided with Educational Packages as a free pack cannot be resold/transferred to other users.
Additional:
We will help with training and model processing!
Need More Information?
Call 480-626-8131
